Automatic IBC Filling Machine with High Accuracy and Customizable Options for Versatile Applications

बुनियादी जानकारी

उत्पत्ति के प्लेस:	शंघाई, चीन
ब्रांड नाम:	Daesum

न्यूनतम आदेश मात्रा:	1
मूल्य:	$28,000-30,000

सबसे अच्छी कीमत अब से संपर्क करें

मशीनरी क्षमता:	8बीपीएच	भरना सटीकता:	± 0.2%एफएस
वज़न:	1500 किलोग्राम	वोल्टेज आपूर्ति:	415/220, 1/3phase, 50/60Hz
आउटपुट गति:	50-60 ड्रम/घंटा	ड्रम आकार:	50L से 1000L
भरने की विधा:	ऊपर या तेज और ड्रिबल भरने के साथ तरल स्तर के नीचे	कंटेनर का आकार:	राउंड IBC टैंक, पेल, ड्रम या अन्य
ड्रम सामग्री:	प्लास्टिक और धातु कंटेनर	कोर घटक:	मोटर, पीएलसी, गियर, बियरिंग, गियरबॉक्स, इंजन
नियंत्रण प्रणाली:	जर्मनी सीमेंस/जापान ओमरोन पीएलसी	फिलिंग सामग्री:	तेल, तरल
निर्माण सामग्री:	स्टेनलेस स्टील या जिंक पेंटेड फिनिश	भरा कोश:	हेवी ड्यूटी वेटिंग प्लेटफ़ॉर्म सिंगल माउंटेड
संलग्नक सामग्री:	स्टेनलेस स्टील 304
प्रमुखता देना:	High Accuracy IBC Filling Machine , Customizable Pallet Filling Machine , 1 Year Warranty Automatic Filling Machine

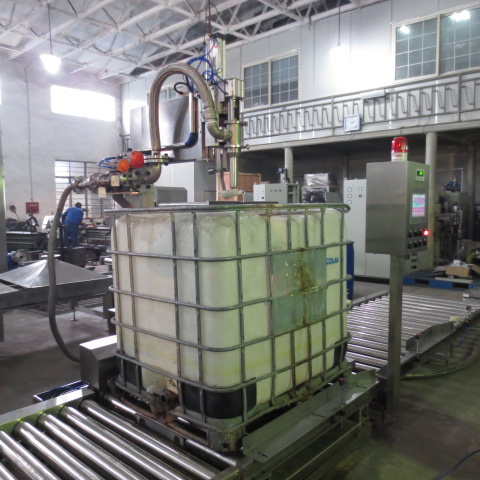

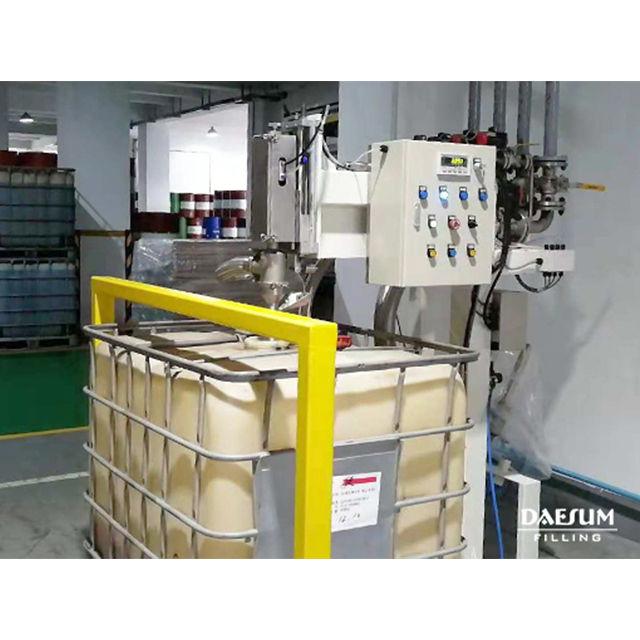

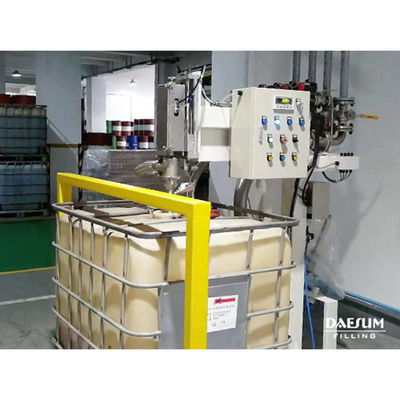

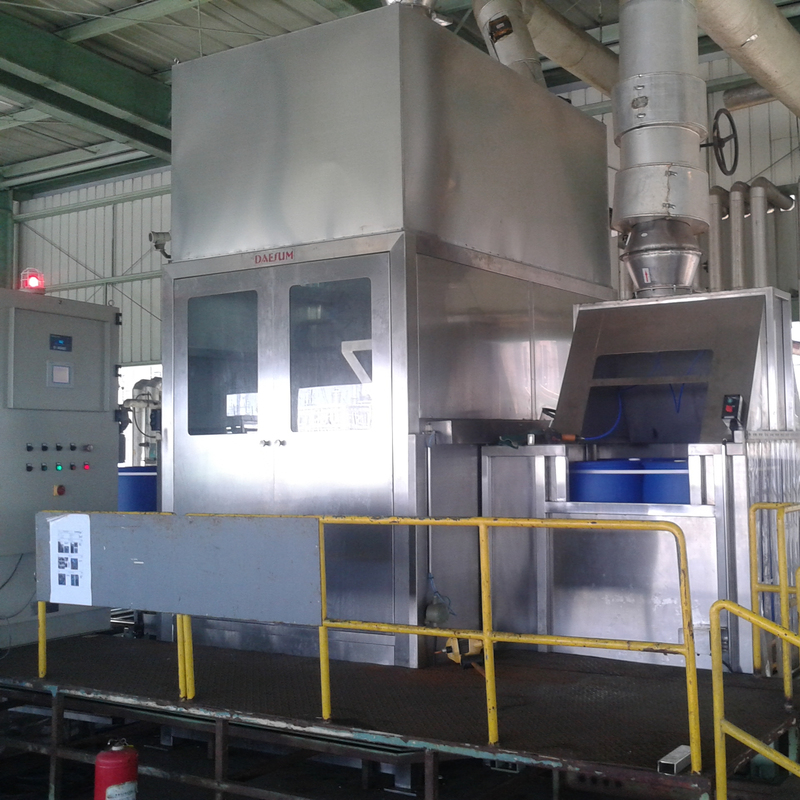

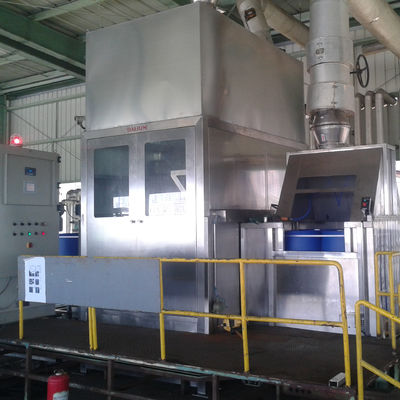

Automatic IBC Filling Machine

This filling machine is suitable for containers from 50L to 1000L and can be manually adjusted via touch screen.

Product Application

Designed for free-flowing to viscous products, including chunky products. Fill volumes range from 50L to 1000L at high flow rates with accuracies up to ±0.2%, depending on drum size and product type.

Technical Specifications

Feature	Specification
Product Compatibility	Free flow to high viscosity
Output Speed	50-60 drums/hour (dependent on drum size and product type)
Container Shape	Round IBC Tank, pail, drum or others
Drum Material	Plastic & Metal container
Drum Size	50L to 1000L
Voltage Supply	415/220, 1/3Phase, 50/60Hz
Filling Accuracy	Class X (0.5) (0.2%)
Filling Mode	Above or under liquid level with fast & dribble fill

Custom configurations are available according to customer requirements.

Type of Build

Stainless Steel or Zinc Painted Finish
Performs debunging, filling, bunging, clinching, stenciling, and palletizing in a compact area with minimal operator requirements

Filling System Features

No product spillage onto clean drums with hood cover under nozzle
Manual/Net/Gross filling with auto two-stage fast & dribble fill
Quick-release, fast interchangeable lance for easy maintenance (SS316 straight pipe)
Top/Low Fill with auto-lowering lance assembly and hood cover
METTLER TOLEDO brand weight scaler with digital display
Heavy-duty weighting platform with single load cell and overload protection
Powered or gravity-fed pallet conveyor system (2x2 configuration)
Spring-assisted nozzle closure during power failure
Stainless steel 304 enclosure with front viewing Perspex cover
Safety interlock for nozzle closure before lance withdrawal
IP55 class control cabinet for weighing indicator and pneumatic components
