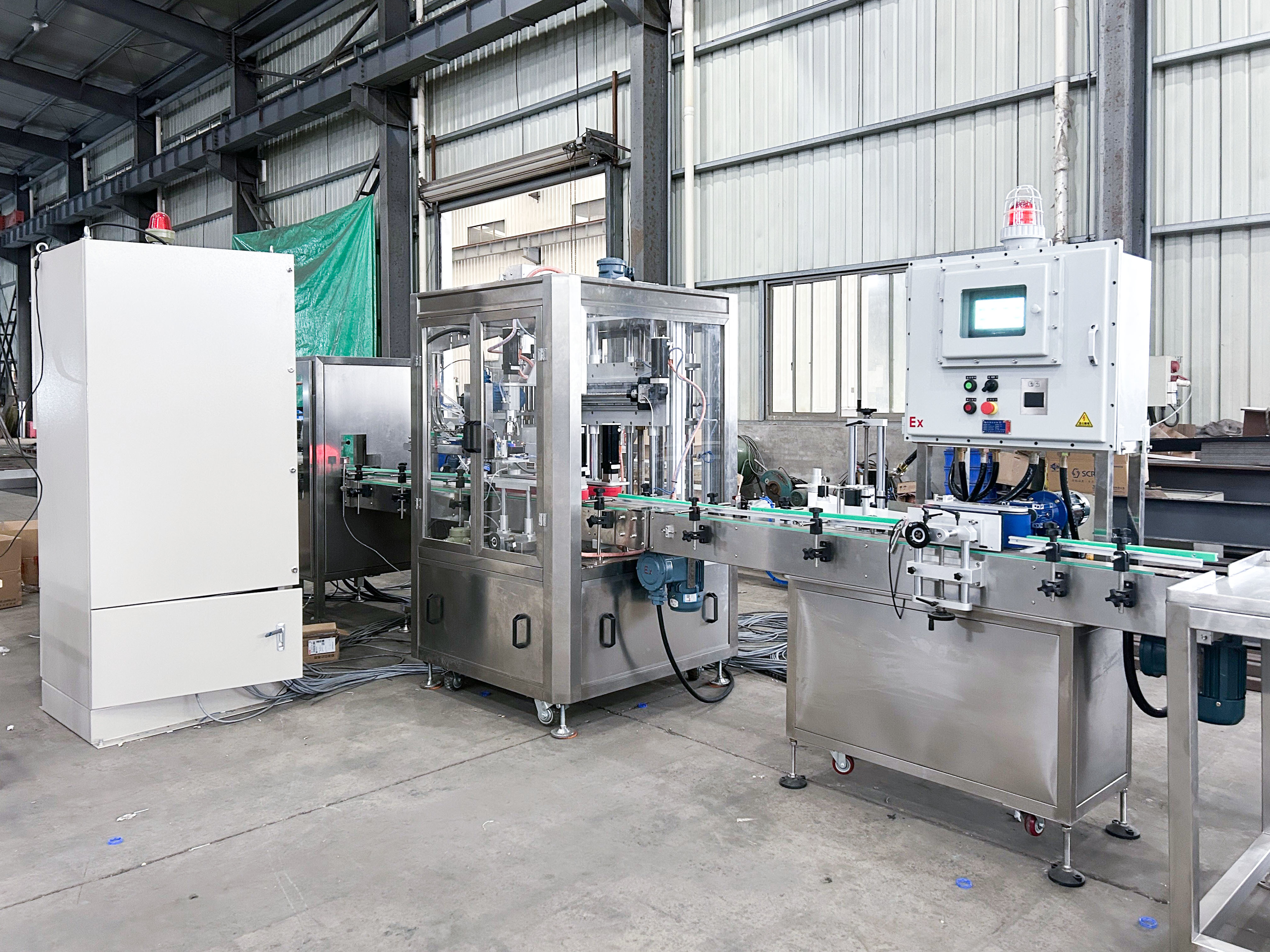

Fully Automatic 250-500ml Small Bottle Filling Machine with 6-16 Nozzles and 1000-2000 BPH Speed

बुनियादी जानकारी

उत्पत्ति के प्लेस:	शंघाई, चीन
ब्रांड नाम:	Daesum

न्यूनतम आदेश मात्रा:	1

सबसे अच्छी कीमत अब से संपर्क करें

आवेदन:	पेय पदार्थ, रसायन, स्वचालित भरना, कैपिंग और पैलेटाइजिंग	पैकेजिंग प्रकार:	बोतलें, बैरल
पैकेजिंग सामग्री:	प्लास्टिक, लकड़ी	स्वचालित ग्रेड:	स्वचालित
प्रेरित प्रकार:	बिजली	वोल्टेज:	वास्तविक स्थिति के अनुसार समायोजित
आयाम(एलडब्ल्यूएच):	वास्तविक स्थिति के अनुसार समायोजित	गारंटी:	1 वर्ष
प्रमुख विक्रय बिंदु:	संचालित करना आसान है	फिलिंग सामग्री:	बीयर, दूध, पानी, तेल, जूस, अन्य, तरल
भरना सटीकता:	± 0.2%एफएस	मशीनरी परीक्षण रिपोर्ट:	प्रदान किया
वीडियो आउटगोइंग-इम्पैक्टेशन:	प्रदान किया	मुख्य घटक:	मोटर, पीएलसी, गियर, बियरिंग, गियरबॉक्स, इंजन, अन्य, फिलिंग नोजल
नोजल भरना:	6, 8, 10	बिक्री के बाद सेवा प्रदान की गई:	वीडियो तकनीकी सहायता, ऑनलाइन समर्थन, फील्ड स्थापना, कमीशन और प्रशिक्षण, विदेशों में सेवा मशीनरी के ल
वजन (किग्रा):	2500	भरने की मात्रा:	500 एमएल, 1 एल, 300 एमएल
आवेदन:	चिकित्सा/रासायनिक	नोजल भरना:	6-16 नोजल
स्वचालित ग्रेड:	पूरी तरह से ऑटो	भरने की गति:	1000-2000 बीपीएच
शुद्धता:	± 0.2% एफएस	परिवेश का तापमान:	-10 ℃ ~ 40 ℃
सुरक्षा स्तर:	IP55 से बेहतर है	सामग्री:	SS304/SS316/PTFE
भरने वाले उत्पाद:	जेल/तेल/तरल
प्रमुखता देना:	fully automatic small bottle filling machine , 250-500ml bottle filling machine with nozzles , small bottle filler 1000-2000 BPH speed

250-500mL Fully Automatic Small Bottle Chemical Liquid Filling Machine

Equipment Description

The equipment realizes automatic small bottle infeed, quantitative filling, capping, labeling and bottle collection. There is 6-12 weighing scales, and can fill 3 different sizes of bottles. The machine is explosive proof, and production speed could reach 1000-2000 bph. The machine is equipped with high speed tracing capping machine, and high speed bottle rotary labeling machine, which could ensure production capacity.

The equipment using peristaltic pump to realize material adding, so that the machine could fill various types of liquid. The machine is easy to operate, and easy to maintenance.

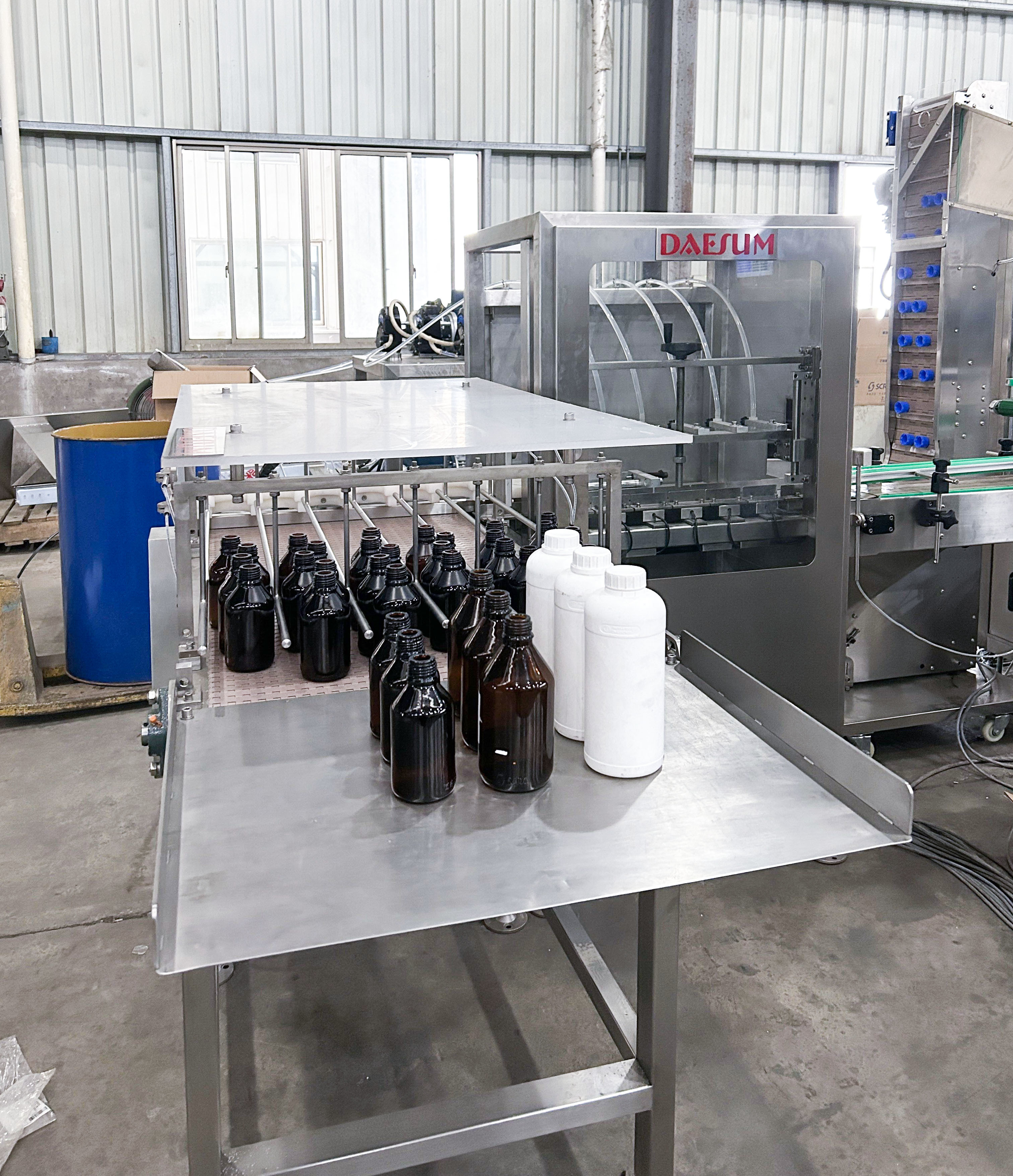

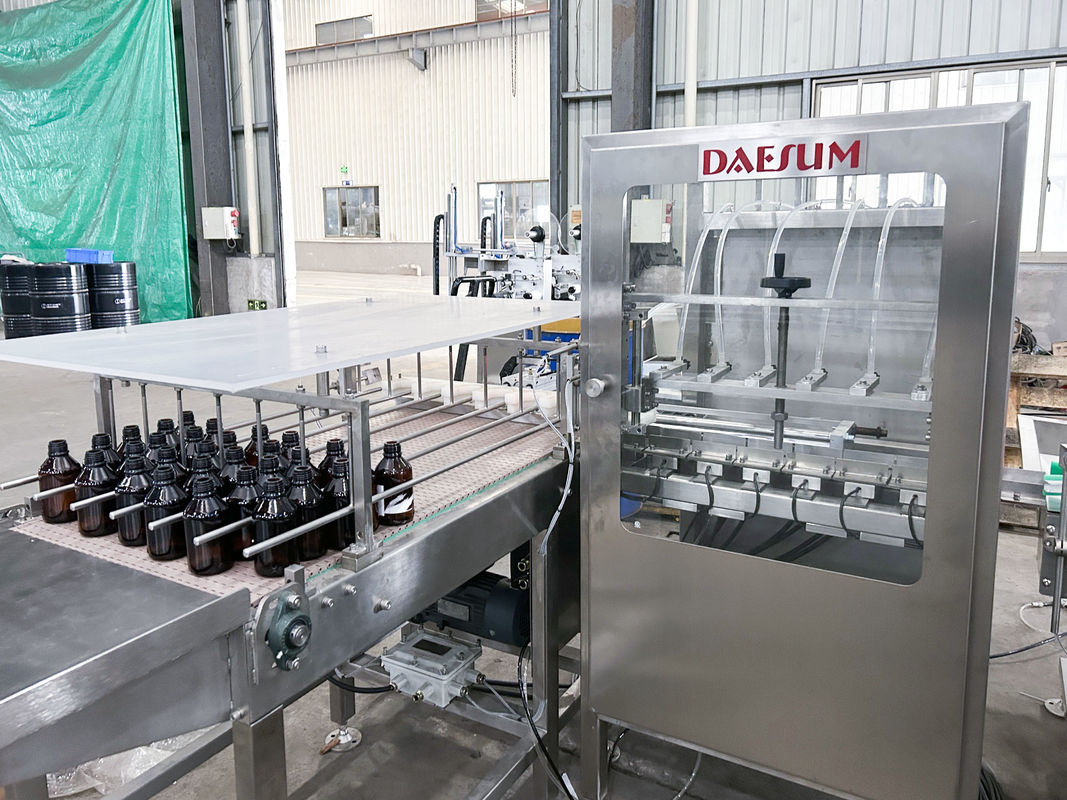

Mesh conveyor

1.Can be equipped with mesh conveyor for bottles infeed.

2.Driven by gear motor

3.Infeed 6 at a time

Tracing capping and labeling

1.High speed capping, up to 1600bph/gripper

2.High speed labeling, up to 2500bph

Specification

Automatic Grade	Fully Automatic
Power	380/440V 50/60Hz
Air pressure	0.4-.0.6Mpa
Filling Accuracy	0.2%FS
Maximum weight	2kg
Interval	1g
Material	SS304/SS316/PTFE
Container	Bottle/Barrel/
Filling range	250-500ml
Filling products	Oil/Liquid
Filling speed	1000-2000bph

Special Applications

DAESUM is specialized in the design and manufacture of special industrial filling, packing and dosing and mixing production line, particularly expertise in dealing with explosive, flammable, toxic, harmful, high-temperature and viscous material.

3.High-temperature and corrosive scenarios
Choose temperature-resistant and corrosion-resistant materials to make material touching parts to ensure the reliability and durability of the machine

4.Low melting point and easily solidified scenarios
The heat keeping design of the filling nozzle is adopted to prevent the material from cooling and blocking the pipeline and ensure a smooth filling path.

1.Flammable and explosive scenarios
The ex-proof and anti-static design of the whole line is adopted, the flow rate is controlled by the front-end combination valve,and the ex-proof electrical equipment of the world's first-class brand is configured to ensure production safety.

2.Toxic and harmful scenarios
The design of closed filling room and air extraction makes the filling environmentally friendly and healthy.

ISO 9001 Certificate

ISO 14001 Certificate

ISO 45001 Certificate

F&Q

1. When was Daesum first established? Where is our factory located at?

- Shanghai Daesum Science Instrument and Equipment Co., Ltd. (“DAESUM”), founded in 1997, is located in 2688 Xinghua Road, Jiading, Shanghai. The company built its own production and living site, with total GFA of 7000m². The site is composed of 5 workshops, 1 office building, and 1 complex building. The workshops occupy around 3600m² in total.

2. What kind of product do you provide?

- 1-1000L filling machines, and powder packing machines, as well as dosing and mixing production line.

3. Can you do explosion proof filling machines?

- Yes

4. What kind of service can you provide?

- We could offer preliminary customized machine design, to manufacture, to installation, to commissioning and after-sales service.

5. Where can you export?

- We export wordwide, we have exported to the USA, Mexico, Australia, Japan, Malaysia, UAE, the Philippines, Singapore, Pakistan, India, and etc.

6. If we need maintenance or meet problem, how could you help?

- Please call or email us the problem you meet, we will reply asap. If necessary, we could offer remote access to help solve the software problem. Otherwise, we would advise you the spareparts to replace the existing broken ones.

7. What kind of package would you use?

- For the entire machine, we usually make shipment in independent containers, and our staff will wrap films around the machine, then fixed it in the container.

- For spareparts, we usually send by air express with boxes.
